What Is an Overhead Valve Engine? The Ultimate OHV Guide

You’ve seen the abbreviation on spec sheets, engine badges, and forum debates: OHV. It stands for Overhead Valve engine — and despite being one of the oldest engine architectures in automotive history, it remains the beating heart of some of the most powerful and capable vehicles on sale today. The Chevrolet Corvette Z06, the Ram 1500, and the Dodge Challenger Hellcat all run OHV engines in 2025. So does your lawn mower.

This guide covers everything: what an overhead valve engine actually is, how it works step by step, the overhead valve engine pros and cons, how the push rod engine vs overhead cam debate really plays out, what the overhead valve engine power band means for real-world driving, and which cars, trucks, and small engines still rely on this design today.

⚡ Quick Answer: What Is an Overhead Valve Engine?

An overhead valve (OHV) engine — also called a pushrod engine — is an internal combustion engine where the intake and exhaust valves sit in the cylinder head (above the combustion chamber), while the camshaft stays inside the engine block. A chain of components — lifters, pushrods, and rocker arms — transfers camshaft motion up to the valves. This design is compact, torque-rich, and mechanically simple, which is why it still powers V8 muscle cars, heavy-duty trucks, and small engines in 2025.

How Does an Overhead Valve Engine Work?

To understand the OHV engine, follow the chain of motion from the bottom of the engine to the top. Unlike a modern overhead cam (OHC) engine — where the camshaft sits directly above the valves in the cylinder head — the OHV system uses a mechanical relay to open and close the valves from a camshaft buried inside the engine block.

Think of it as a game of telephone: the crankshaft signals the camshaft, the camshaft moves the lifter, the lifter pushes the pushrod upward, the pushrod pivots the rocker arm, and the rocker arm finally opens the valve. Each step adds a small amount of mechanical mass — which is both the design’s strength and its limitation at high RPM.

The OHV Valvetrain Sequence

(Insert overhead valve engine diagram here. Suggested alt text: “Overhead valve engine diagram showing camshaft, lifter, pushrod, rocker arm, and valve sequence.”)

1. Crankshaft: Converts piston up-down motion into rotation. Drives the camshaft via a short timing chain or gear set.
2. Camshaft (cam-in-block): Located inside the engine block — the defining feature that separates OHV from OHC. Its lobe profiles dictate when and how far each valve opens.
3. Lifters (Tappets): Ride directly on the camshaft lobes. Modern OHV engines use hydraulic lifters that self-adjust; high-performance builds prefer solid (mechanical) lifters for faster response.
4. Pushrods: Long metal rods extending from the lifters up through the engine block into the cylinder head. The defining visible feature of any pushrod engine. Bent pushrods — caused by over-revving or a dropped valve — are a common OHV failure mode.
5. Rocker Arms: Pivot arms in the cylinder head. The pushrod pushes one end up; the other end pushes the valve stem down — like a seesaw. Roller rockers reduce friction and are a popular performance upgrade.
6. Valves (in the cylinder head): Intake valves admit the air/fuel mixture; exhaust valves expel burned gases. Both live in the cylinder head, above the combustion chamber — hence “overhead valve.”
7. Valve Springs: Return each valve to its closed position after the rocker arm releases. Upgrading to higher-rate springs is essential when raising RPM limits on modified builds.

Overhead Valve vs. Side Valve (Flathead) Engine

Before the OHV design took over, most engines used a side valve (flathead) engine — a layout where the valves sat in the engine block beside the pistons, not above the combustion chamber. Understanding this contrast shows why the overhead valve engine was such a breakthrough.

In a flathead engine, the combustion chamber is L-shaped or T-shaped, which is thermally inefficient and severely limits the compression ratio. The valves trap heat inside the block rather than dissipating it through the head. Flathead engines were inherently limited in power density and prone to overheating under load, which is why a typical flathead compression ratio sat between 5:1 and 7:1 — vs. 8:1 and above for OHV designs.

The turning point came in 1949 when Oldsmobile introduced the Rocket V8 — the first modern high-compression OHV V8. By the late 1950s, the side valve engine had virtually disappeared from passenger cars. Today, flathead engines exist only in a handful of very old or extremely specialized small-engine applications.

Overhead Valve Engine Pros and Cons

Understanding overhead valve engine advantages and disadvantages explains why this design has survived for over a century alongside — and often outperforming — more complex OHC alternatives.

Advantages of the OHV Engine

• Compact packaging: No camshafts in the cylinder heads means a shorter, narrower engine. This is why a 6.2L GM OHV V8 fits under a hood where a 5.0L DOHC V8 might barely squeeze in. The LS engine’s legendary swap-ability is a direct result of this compactness.
• Exceptional low-end torque: OHV engines deliver strong torque from as low as 1,500–2,000 RPM — ideal for trucks, SUVs, and muscle cars where usable off-the-line power matters more than peak horsepower at 7,000 RPM.
• Mechanical simplicity: Fewer components than any OHC design. Short timing chain, minimal tensioners, no dual overhead camshafts. Fewer parts means fewer failure points, lower manufacturing cost, and easier DIY maintenance.
• Lower center of gravity: The heavy camshaft stays low in the block, keeping the engine’s mass concentrated lower in the vehicle — which improves handling balance and is part of why the Corvette has always used an OHV V8.
• Large displacement in a small space: A 7.0L LS7 fits in the same bay as much smaller DOHC competitors. Large displacement equals high torque without requiring forced induction.
• Proven long-term reliability: Simpler timing system, fewer high-stress components. A well-maintained OHV engine routinely outlasts many OHC designs. The Chevy small-block family has run reliably in millions of vehicles for over six decades.

Disadvantages of the OHV Engine

• RPM ceiling and valve float: The mass of pushrods, lifters, and rocker arms creates valvetrain inertia. Above ~6,500–7,000 RPM, valve springs can’t return valves fast enough — causing “valve float,” which kills power and can damage the engine. This is why OHV engines don’t appear in 9,000 RPM sports cars.
• Limited valves per cylinder: Routing pushrods through the block makes fitting four valves per cylinder difficult. Most OHV engines use two valves per cylinder, limiting peak airflow vs. 4-valve DOHC designs. This is why OHV engines rely on displacement rather than high specific power output.
• Variable valve timing is more complex: Adding independent VVT for both intake and exhaust — straightforward on DOHC — requires more engineering creativity on OHV. The GM Gen V LT1 has achieved it, but the architecture makes it harder by nature.
• Less suited to small economy engines: For small-bore, high-revving 4-cylinder engines, DOHC is more efficient. A DOHC 4-cylinder breathes more freely at high RPM and delivers better fuel economy from less displacement — which is why OHV is absent from modern economy cars.

Overhead Valve Engine vs Overhead Cam: OHV vs OHC vs SOHC vs DOHC

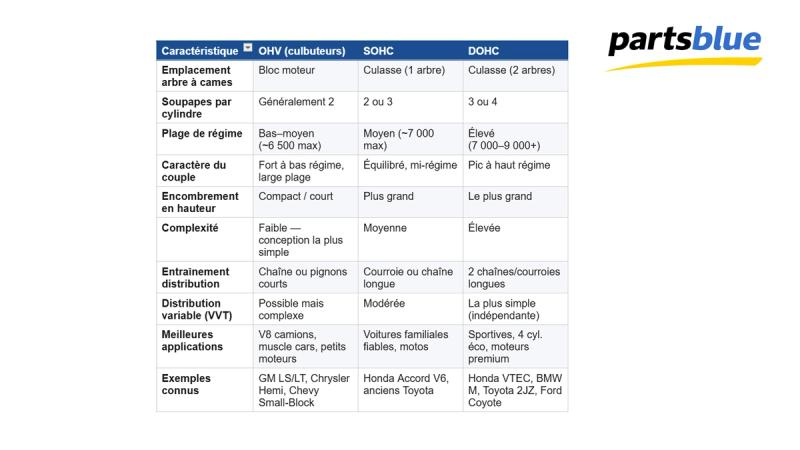

The push rod engine vs overhead cam debate is one of the oldest arguments in automotive engineering. The table below is the definitive reference for understanding which design belongs in which application.

The bottom line: OHV dominates where displacement, compact packaging, and low-end torque matter most. DOHC dominates where high-RPM power, fuel economy, and variable timing are the priority. Neither is universally better — the right answer depends entirely on what the engine needs to do.

The Overhead Valve Engine Power Band Explained

The overhead valve engine power band is one of its most distinctive characteristics and a core reason truck and muscle car drivers love the OHV design.

A power band describes the RPM range where an engine delivers its most usable power and torque. The OHV power band is low and wide — you feel strong torque from the moment you press the accelerator, without needing to rev the engine first. Most OHV pushrod V8 engines deliver peak torque between 2,000 and 4,000 RPM, with a broad, flat torque curve that stays strong across a wide range.

Compare that to a high-revving DOHC sports engine, which might not reach peak torque until 5,500–8,000 RPM. Below that range, it can feel surprisingly flat and unresponsive — you have to rev it hard to wake it up. The OHV engine feels effortless from idle. This is why a 5.7L Hemi-powered Ram 1500 can tow 11,000 lbs without straining, while a DOHC sports engine of the same displacement would feel overwhelmed under the same load at low RPM.

The trade-off: if you want to chase 8,000+ RPM redlines — Ferrari, Honda S2000, BMW M — the DOHC is built for that mission. The valvetrain mass of the OHV engine becomes a hard ceiling above about 6,500 RPM.

Types of Overhead Valve Engines and Their Applications

The OHV design spans an enormous range — from the lawnmower in your garage to the supercharged V8 in the Dodge Challenger Hellcat.

The American Muscle Car and Performance V8

The most iconic application of the overhead valve engine. General Motors’ LS and LT engine families — powering the Corvette, Camaro, Silverado, and hundreds of other vehicles — are OHV pushrod V8s. The LS engine has become the most popular swap platform in the world, primarily because its compact OHV architecture fits into almost any vehicle. A stock LS3 produces 430 HP from 6.2L; modified builds have pushed past 2,000 HP using the same basic block.

The Hemi V8 (Chrysler / Stellantis)

Are Hemi engines OHV? Yes — the 5.7L, 6.4L 392, and 6.2L Hellcat are all pushrod OHV engines. The “Hemi” name refers to the hemispherical combustion chamber shape, which allows for larger valves and better airflow within the OHV layout — how Chrysler extracted 717 HP from a two-valve-per-cylinder pushrod design in the original Hellcat.

Heavy-Duty Truck and Towing Engines

The 6.2L GM EcoTec3 V8 in the Silverado 1500, the 5.7L Hemi in the Ram 1500, and the 6.4L in the Ram Heavy Duty are all OHV engines because their low-end torque and compact packaging are exactly what towing demands. A flat torque curve from 1,500 RPM makes trailer loading effortless — something a high-revving DOHC simply can’t match at the same displacement.

Small Engines: Lawn Mowers, Generators, and Pressure Washers

Is Briggs and Stratton an OHV engine? Yes — and so are Honda, Kawasaki, Kohler, and most modern small engine brands. OHV replaced flathead small engines because it runs cooler, uses less oil, and lasts significantly longer. If your mower was made after the mid-1990s, it has an OHV engine.

Key OHV Engine Components and Common Failure Points

If you’re looking at an overhead valve engine diagram, here is what each major component does — and what to watch for when things go wrong.

• Cylinder block: The main engine housing and home of the camshaft in an OHV engine. Contains cylinder bores, coolant passages, and oil galleries.
• Cylinder head: Sits on top of the block. Houses the valves, valve seats, valve guides, rocker arms, and spark plugs. In OHV, the cam is not in the head — that’s the structural difference from OHC.
• Camshaft: The master controller of valve timing. Lobe profiles determine how long and how far each valve opens. A performance cam grind is the single most impactful internal modification for any OHV engine.
• Lifters: Hydraulic lifters self-adjust and are ideal for street use. Solid lifters require periodic valve lash adjustment but respond faster, making them the choice for high-RPM performance builds.
• Pushrods: Must be straight and the correct length for the engine. Bent pushrods are one of the most common OHV failure points — always inspect during an overhead rebuild.
• Rocker arms: Factory stamped-steel rockers are functional; aftermarket roller rockers reduce friction and heat, and are one of the most cost-effective upgrades on any OHV engine.
• Valve springs: Higher-rate springs are required when upgrading cam profiles or raising RPM limits. Spring fatigue is a common cause of high-RPM misfires in modified OHV builds.
• Valve stem seals: Prevent oil from entering the combustion chamber through the valve stems. Worn seals cause blue smoke on cold startup and elevated oil consumption — a frequent symptom in high-mileage OHV engines.

Frequently Asked Questions About Overhead Valve Engines

What is an overhead valve engine system?

An overhead valve engine system places the intake and exhaust valves in the cylinder head while keeping the camshaft inside the engine block. The cam operates the valves through lifters, pushrods, and rocker arms. This design is also called a pushrod engine.

What is the difference between OHC and OHV?

The key difference is camshaft location. In OHV, the cam is in the engine block and uses pushrods to move the valves. In OHC, the cam is in the cylinder head — directly above the valves — eliminating pushrods entirely. OHC engines allow more precise timing at high RPM and support more valves per cylinder, but are physically larger and more complex.

Which is better, DOHC or OHV?

DOHC is better for small-displacement engines, economy cars, and high-revving sports applications. OHV is better for large-displacement V8 trucks and muscle cars where compact packaging, low-end torque, and mechanical simplicity matter more than peak RPM power.

Why are OHV engines better for certain uses?

OHV engines excel when you need: large displacement in a compact space, maximum torque at low RPM for towing or hauling, mechanical simplicity with fewer high-risk components, and flexibility for aftermarket performance builds where the clean separation of block and head gives builders enormous tuning latitude.

What are the disadvantages of OHC engines?

OHC engines are physically larger and taller than equivalent OHV engines, making packaging harder in tight engine bays. They use long timing chains or belts that require tensioners and scheduled replacement. On interference engines, timing chain failure can cause catastrophic piston-to-valve contact. They are also significantly more expensive to manufacture and repair.

What cars have OHV engines?

Major examples include the Chevrolet Corvette (all LS/LT V8s through C7), Dodge Challenger and Charger (all Hemi variants), Ram 1500 and Ram Heavy Duty trucks, Chevrolet Silverado and GMC Sierra V8 trims, and the Jeep Grand Cherokee Hemi. In the small engine world, virtually all modern Briggs & Stratton, Honda, Kawasaki, and Kohler engines are OHV.

Is Briggs and Stratton an OHV engine?

Yes. All modern Briggs & Stratton engines are OHV designs. The company transitioned away from flathead architecture because OHV engines run cooler, use less oil, and last considerably longer. If your mower, generator, or pressure washer was made after the mid-1990s, it uses an OHV engine.

Are Hemi engines OHV?

Yes. All modern Chrysler/Stellantis Hemi engines — 5.7L, 6.4L 392, and 6.2L Hellcat — are OHV pushrod designs. The “Hemi” name refers to the hemispherical combustion chamber shape, which allows for larger valves and better airflow within the OHV layout. This is how Chrysler achieved 717 HP from a two-valve-per-cylinder pushrod engine.

Is OHV the same as pushrod?

Yes. In modern automotive usage, OHV and pushrod engine are interchangeable. The term OHV technically applies to any engine with valves above the combustion chamber, but in practice it refers exclusively to cam-in-block engines that use pushrods.

Which is more reliable: DOHC or SOHC?

Both are very reliable when maintained properly. SOHC is somewhat simpler than DOHC, giving it a slight theoretical reliability edge. However, OHV engines are widely considered the most reliable of all three architectures for high-mileage use, because their short timing chain is far less prone to the stretch and tensioner failures that affect long-chain OHC engines.
