Quick Answer: Sway Bar Replacement Cost in Canada

Sway bar link replacement: $150–$400 CAD (both sides, parts + labour)

Sway bar bushing replacement: $100–$300 CAD

Full stabilizer bar replacement: $300–$700 CAD for most vehicles

Links + bushings combined: $250–$600 CAD

Luxury/truck/active suspension systems: $700–$1,200+ CAD

You're hearing a clunk under your car every time you hit a bump. Your mechanic says it's the sway bar links. The quote lands on your phone: $800. You stare at it, wondering if this is reasonable.

It might be. Or it might not be. The honest answer is that sway bar replacement cost in Canada ranges dramatically based on what exactly needs replacing, what you drive, and where you take it. A simple sway bar link swap on a Honda Civic costs a fraction of what the same job costs on a BMW X5. Canadian drivers dealing with road salt and seized hardware will almost always pay more than the US averages you'll find in most online guides.

This guide breaks down every cost, every variable, and every way to avoid overpaying. Whether you're comparing shop quotes, considering a DIY repair, or trying to understand why the stabiliser bar replacement cost on your truck is so high. You'll find a specific, direct answer here.

What Is a Sway Bar and What Does It Do?

A sway bar (also called an anti-roll bar, stabiliser bar, or anti-sway bar) is a metal rod that connects the left and right sides of your vehicle's suspension. Its job is simple but critical: it resists body roll when you corner, keeping your car level and your tyres in firm contact with the road.

When you turn left, physics tries to tip your car to the right. The sway bar generates a counteracting torque that distributes that force across both sides of the suspension, flattening out the lean and keeping the vehicle stable. Without a functioning sway bar, cornering becomes unpredictable, tire wear increases, and rollover risk goes up in severe cases.

Sway Bar vs. Sway Bar Links vs. Sway Bar Bushings: What's the Difference?

Most drivers (and even some quotes from shops) use these terms interchangeably. There are three distinct parts with three different replacement costs:

The sway bar itself: The main steel rod. Extremely durable and rarely needs replacement unless it's been in a collision or has severe rust damage. When mechanics say 'sway bar replacement,' they often mean the links or bushings, not the bar.
Sway bar links (end links): Short arms with ball joints at each end that connect the bar to the suspension control arm or strut. These are the most commonly replaced sway bar components. Ball joints wear out, boots crack, and Canadian road salt accelerates corrosion.
Sway bar bushings: Rubber (or polyurethane) sleeves that mount the sway bar to the vehicle's frame via brackets. They degrade over time, causing clunks and rattles even when the links are fine.

Knowing which component actually failed determines how much you'll pay. A link replacement is a quick, affordable job. A full stabilizer bar replacement on a vehicle with a complex active suspension is a different matter entirely.

How Do Sway Bar Links Fail?

Sway bar links fail gradually. The ball joints at each end of the link are the weak points. They're constantly moving as your suspension cycles up and down, and the rubber boots that protect them from dirt and moisture eventually crack or tear.

Once a boot fails, water and road grit enter the joint. In Canadian conditions, where vehicles are exposed to road salt from October through April, this dramatically accelerates rust and corrosion. The joint becomes loose, the link develops play, and you start to hear the classic sway bar clunk: a metallic knock that happens over bumps and during turns.

Potholes are another major cause. A direct hit to a pothole subjects the sway bar link to a massive shock load. A link that was already marginal can snap outright. Prolonged driving on rough gravel roads and through construction zones places continuous fatigue stress on the ball joints and considerably shortens link life.

Average Sway Bar Replacement Cost in Canada (2025)

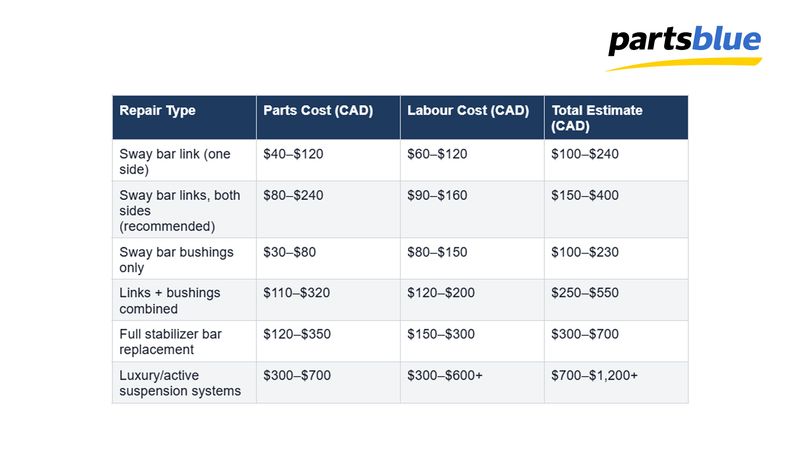

The table below gives realistic Canadian cost ranges in CAD. These figures reflect Canadian labour rates and domestic parts sourcing. These are not converted USD estimates.

Labour rates in Canada vary by province and shop type. Urban Ontario and BC shops typically charge $120–$180/hr. Independent shops in smaller markets run $90–$130/hr. Dealerships typically sit at $150–$200+/hr. The job itself takes 1–2 hours under normal conditions, longer if hardware is seized from rust, which is a very common issue on vehicles driven through Canadian winters.

Sway Bar Link Replacement Cost

Replacing sway bar links is the most common sway bar service. Links themselves are affordable: most aftermarket links for mainstream vehicles (Toyota Corolla, Honda Civic, Chevy Silverado) run $30–$80 per link from Canadian suppliers. OEM links from a dealer can be $80–$200+ per link depending on the vehicle.

Most mechanics recommend replacing both sides at once even if only one is failed. The cost difference is minimal since labour already overlaps, and a link that has lasted as long as the failed one is usually close to failure too. Doing both sides in one visit saves you a second labour bill within months.

Canadian tip: If your vehicle has spent winters in Ontario, Quebec, or the Maritimes, budget an additional $30–$80 per link for labour time dealing with seized hardware. Rust-frozen nuts require penetrating oil, heat, or cutting, and shops charge for that time.

Sway Bar Bushing Replacement Cost

Bushing replacement is typically cheaper than link replacement when done alone. The parts are inexpensive. A set of four bushings for a common sedan runs $25–$60 from an aftermarket supplier. OEM bushings from a dealer cost more, often $50–$150 for the set.

Labour is where the cost adds up. Accessing the bushing brackets can be awkward depending on the vehicle, and removing corroded bracket bolts adds time. On a typical Canadian vehicle, expect $100–$230 all-in for a bushing replacement.

Full Stabilizer Bar Replacement Cost

The bar itself rarely fails, but when it does, usually due to collision damage or severe structural rust, replacement is more involved. The bar is a long component that requires disconnecting the links and bushings before removal, and reassembling everything correctly afterward.

Full bar replacement costs $300–$700 CAD for most passenger vehicles and light trucks. Heavy-duty truck bars and vehicles with active anti-roll systems (such as the Toyota KDSS found on Land Cruisers and 4Runners, or BMW Active Roll Stabilization) can exceed $1,200 CAD due to specialized parts and additional disassembly requirements.

Cost to Replace Sway Bar Links and Bushings Together

If your sway bar is clunking and both the links and bushings are worn, doing them together is always the smarter financial move. Labour overlaps significantly because the mechanic is already under the car with the right tools, and a combined service typically runs $250–$550 CAD, less than what you'd pay booking two separate appointments.

Should You Replace Sway Bar Bushings at the Same Time as Links?

Yes. If the bushings are showing wear, replace them alongside the links. Bushings on a vehicle with failed links have absorbed additional stress, meaning they're likely close to the end of their service life too. The labour cost difference between doing links alone vs. links and bushings together is usually only $30–$60, making it a very efficient use of your service visit.

If the bushings are in good condition on inspection, replacing them is optional. A good mechanic will check them when the links are out and give you an honest assessment.

Ready to order parts before your appointment? Browse sway bar links and bushings for your exact vehicle at PartsBlue. CAD pricing, no customs fees, ships from Canada.

Sway Bar Replacement Cost by Vehicle Type

The make and model of your vehicle is one of the biggest factors in the final cost. Parts availability, component complexity, and how accessible the hardware is all vary significantly across vehicle types.

Front Sway Bar Replacement Cost

Front sway bar link replacement is the most common job. Most vehicles have a front sway bar as standard, and the front suspension sees more stress than the rear, especially in Canadian conditions where potholes and frost heaves are a constant. Front sway bar link replacement costs $150–$400 CAD for both sides on most mainstream vehicles.

Front links are generally more accessible than rear links, which helps keep labour time shorter. MacPherson strut-equipped vehicles (the most common setup on Canadian sedans and crossovers) make front link access relatively straightforward.

Rear Sway Bar Replacement Cost

Not all vehicles have a rear sway bar, but many SUVs, trucks, and sport-oriented vehicles do. Rear sway bar links tend to be slightly more accessible on some vehicles and less accessible on others depending on the chassis layout.

Rear sway bar link replacement typically runs $120–$300 CAD per side or $200–$500 CAD for both sides. If you need both front and rear sway bar links replaced, the total can reach $400 to $800 CAD. Many shops will discount the combined labour.

Sway Bar Replacement Cost for Toyota, Honda, and Chevrolet

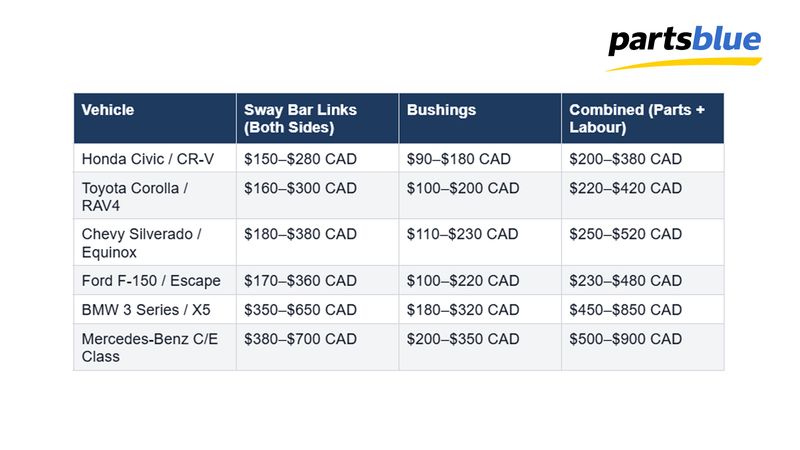

Here are realistic estimates for three of Canada's most common vehicle makes:

Honda and Toyota sway bar link replacement costs sit on the lower end because parts are plentiful, affordable, and well-supported by both OEM and aftermarket suppliers in Canada. Chevrolet trucks cost more primarily because larger-diameter bars use heavier-duty links, and shop labour time is slightly longer. Luxury vehicles carry a significant premium at both the parts and labour level.

Buy Sway Bar Links at PartsBlue

Vehicle-based sway bar links, bushings, and stabilizer bar components.

What Factors Affect the Cost of Sway Bar Replacement?

OEM vs. Aftermarket Parts

You have two main options when replacing sway bar links or bushings: OEM (Original Equipment Manufacturer) parts sourced from the dealer, or aftermarket parts from brands like Moog, TRQ, A-Premium, or Dorman.

OEM parts: Exact-fit, dealer-sourced. Higher cost ($80–$200+ per link) but guaranteed compatibility. Best choice for newer vehicles still under warranty or vehicles where fitment precision matters most.
Aftermarket parts: Third-party manufactured to OEM specifications. Cost $30–$80 per link for quality brands. Quality varies. Reputable brands (Moog, Monroe, TRQ) offer equivalent or better durability than OEM at 40–60% lower cost.
Supply-your-own parts: Some independent shops will install parts you purchase yourself. This can save $40–$100 on parts cost but may affect the shop's warranty on the repair. Always confirm with the shop before buying your own parts.

For most Canadian drivers, quality aftermarket links from a trusted brand represent the best value. Order through a Canadian supplier like PartsBlue to get the right part with CAD pricing, no customs fees, and fast domestic shipping.

Labour Rates Across Canadian Provinces

Labour is typically 50–60% of the total sway bar replacement bill, and shop labour rates vary significantly by province across Canada.:

Toronto/GTA, Vancouver: $140–$200/hr at independent shops; $170–$220/hr at dealerships
Calgary, Edmonton: $120–$170/hr at independent shops
Montreal, Ottawa: $110–$160/hr at independent shops
Smaller markets, rural areas: $90 to $130/hr, often the best value for straightforward suspension work

Dealer rates are consistently higher than independent shops, but dealers are sometimes the better choice for vehicles under warranty or when dealer-specific tooling is required.

Road Salt and Rust: A Uniquely Canadian Cost Factor

This is the factor most US-based cost guides completely miss. In Canadian provinces that use road salt, which includes most of Ontario, Quebec, the Maritimes, and parts of the Prairies, hardware seizes. Sway bar link bolts and bushing bracket bolts corrode to the point where they require penetrating lubricant, heat, or cutting to remove.

A standard sway bar link job that takes 45 minutes on a rust-free Alberta vehicle can take 2+ hours on a 7-year-old Ontario car. Most shops charge their standard rate for that extra time. Budget an additional $60–$120 per axle on older vehicles driven in salt-heavy regions. It's not a rip-off. It's the reality of working on Canadian suspension hardware.

Dealer vs. Independent Shop

Independent shops are almost always the better value for sway bar work. This is a well-documented repair. No special dealer tools are required for most vehicles, and quality independent mechanics perform this job routinely.

Dealerships typically charge 30–50% more in labour for the same job. The main reasons to use a dealer for this repair: your vehicle is under a factory warranty that requires dealer service, or you drive a vehicle with a proprietary active anti-roll system (Toyota KDSS, BMW ARS) where dealer-specific software or procedures are required.

Additional Costs to Expect

A sway bar link or bushing replacement doesn't always stop at the sway bar. Here are the additional charges that commonly appear on the final invoice:

Wheel alignment ($100–$180 CAD): Sway bar component replacement itself does not change alignment angles. The bar attaches to the suspension, not the steering geometry. However, if a mechanic is under your car for sway bar work and finds a worn tie rod or control arm bushing at the same time, fixing those components will require an alignment. Ask before authorizing anything beyond the original quote.
Control arm inspection ($0–$50 diagnostic time): Sway bar links connect to the control arms. A mechanic doing this job will typically inspect the control arm bushings and ball joints while they're accessible. If additional wear is found, you may receive a recommendation to repair those at the same visit.
Penetrating lubricant and hardware ($20–$60): Seized bolts on older Canadian vehicles sometimes strip or snap during removal, requiring new hardware. A set of replacement bolts is inexpensive, but the labour to deal with a snapped stud adds time to the bill.
Shop supplies / waste disposal ($15–$30): Many Canadian shops add a standard shop supplies fee to cover lubricants, rags, and disposal. Usually a flat charge, not negotiable, and normal practice.

What Are the Signs of a Bad Sway Bar?

Sway bar problems are usually easy to identify because they produce consistent, recognizable symptoms. Catching them early keeps the repair straightforward. A failed link that's ignored long enough can cause additional stress on the bar itself and surrounding suspension components.

Clunking or knocking noise over bumps: The most common symptom. A loose or failed sway bar link produces a metallic clunk when the suspension cycles, typically audible on both sides but sometimes isolated to one corner. The noise is most noticeable at low speeds over rough pavement, speed bumps, and pothole edges.
Rattling noise when turning: As the suspension loads during a turn and the sway bar twists, a failed link allows the bar to knock against surrounding components. If you hear rattling specifically when turning and not just over bumps, the sway bar links are a primary suspect.
Excessive body roll when cornering: A broken or disconnected sway bar link removes the bar's ability to resist roll on the affected side. The vehicle will lean noticeably more than usual during turns. This is particularly noticeable at highway on-ramp speeds.
Pulling or drifting handling: A failed rear sway bar link can cause the vehicle to feel loose or unpredictable at the rear when cornering. A failed front link may contribute to a slight pull feeling.
Uneven tire wear: Long-term sway bar failure allows the suspension to operate asymmetrically, which causes uneven loading on the tires. If you're seeing wear that doesn't match your alignment records, have the sway bar components inspected.

Cheap Sway Bar Links at PartsBlue

Browse vehicle based sway bar links, bushings, and stabilizer bar components partsblue.ca/sway-bars

Can I Drive with a Bad Sway Bar?

In the short term, yes. But it's not advisable, and the answer changes based on severity. A vehicle with a worn (but not broken) sway bar link is driveable but handles less predictably, particularly during emergency manoeuvres and highway lane changes. The clunking noise is annoying but not immediately dangerous.

A vehicle with a completely broken or disconnected sway bar link is a different situation. At highway speeds, the handling difference during sudden swerving or evasive action can be significant enough to cause a loss of control. Most mechanics classify this as an urgent repair. In Ontario, a failed sway bar link is a rejectable condition under Ontario vehicle safety inspection standards, meaning a vehicle with a broken link will not pass a Safety Standards Certificate inspection. It is not an emergency that prevents you from driving to the shop, but something to fix within days, not weeks or months.

The Canadian winter context makes this more important. Reduced sway bar effectiveness combined with snow and ice means less margin for error when the road surface is compromised.

How Long Do Sway Bars Last?

The sway bar itself is nearly a lifetime component. It's a simple steel rod, and short of a collision or severe corrosion, it rarely needs replacement. The links and bushings are the wear items.

Sway bar links typically last 80,000–160,000 km (50,000–100,000 miles) under normal conditions. Canadian winters shorten that lifespan. A vehicle driven year-round in Ontario or Quebec with heavy road salt exposure may see link failure at 60,000–100,000 km. Bushings have similar lifespans but sometimes outlast links, sometimes fail before them depending on the vehicle and climate.

At your next oil change or tire rotation, ask your technician to visually inspect the sway bar boots and links. It takes 30 seconds and can catch a developing problem before it becomes an urgent repair.

Is Replacing a Sway Bar Link a DIY Job?

For a moderately skilled DIYer with the right tools, sway bar link replacement is one of the more approachable suspension repairs. Unlike strut replacement or control arm work, it doesn't involve compressed springs or complex alignment procedures, and disconnecting the sway bar doesn't affect your vehicle's wheel alignment.

The main challenge in Canada is seized hardware. Sway bar link bolts that have spent years coated in road salt and grime frequently require penetrating oil (applied 24 hours before the job), heat from a torch, or cutting with an angle grinder if they round off or snap. This is where DIY sway bar replacement can go from a 45-minute job to a 3-hour ordeal for a first-timer.

Tools and Skills Required

Jack stands and floor jack (never work under a vehicle supported only by a hydraulic jack)
Socket set with metric and imperial sizes (most Canadian vehicles use metric)
Torque wrench (sway bar link fasteners have specific torque specs)
Penetrating lubricant such as Blaster or PB Blaster, applied the night before
Ball joint separator or pickle fork (for links with ball joint ends rather than bolt ends)
Propane or MAPP torch (optional but very helpful for seized hardware)

The repair itself involves: raising and supporting the vehicle, removing the wheel if needed for clearance, unbolting the old link from the sway bar and the strut/control arm, installing the new link, and torquing to spec. Most mainstream vehicles have service manual torque specs readily available online.

Parts cost savings from DIY: Doing the job yourself saves $90–$160 in labour cost. For a $150–$200 total repair bill, that's a significant percentage. Just factor in your time and the reality of Canadian rust before committing.

Do You Need a Wheel Alignment After Replacing Sway Bar Bushings?

No. Replacing sway bar bushings or links does not change your wheel alignment angles. The sway bar attaches to the suspension, not to the steering geometry. Unlike replacing a control arm or tie rod end, sway bar component replacement does not require a follow-up alignment.

The exception: if your mechanic discovers and repairs other suspension components during the same visit (control arm bushings, ball joints, tie rod ends), those repairs do affect alignment and will require an alignment check. Make sure you know exactly what's being repaired before signing off on additional services.

How to Save Money on Sway Bar Replacement in Canada

A sway bar repair doesn't have to break the budget. Here are the most effective ways to control the cost:

Buy your own parts from a Canadian supplier: Ordering your sway bar links and bushings from a Canadian online auto parts store before booking your appointment can save $60–$120 compared to dealer parts pricing. You get CAD pricing, no duties, and fast domestic shipping. Bring the parts to an independent shop and pay labour only.
Get three quotes: Sway bar link replacement is a standardized job. Call three local independent shops with the same information including year, make, model, and which links need replacing, then compare. Quote variation of $100–$200 on the same repair is not unusual.
Replace in pairs: Always replace both sides when one link fails. The parts cost of the second link is usually $30–$80, and the incremental labour for the second side is minimal since the mechanic is already set up on that axle.
Combine with other suspension work: If your vehicle needs other suspension work such as wheel bearings, ball joints, or control arms, scheduling it together saves significant labour costs since the mechanic is already working in the same area.
Avoid dealership markup for this repair: Unless your vehicle is under warranty, sway bar component replacement at an independent shop costs 30–50% less than the dealership for identical quality work.

Shop Sway Bar Links at PartsBlue

Browse sway bar links, bushings, and stabilizer bar components for your exact vehicle at very low cost: partsblue.ca/sway-bars

FAQ: Sway Bar Replacement Cost

What is the average cost of a sway bar replacement in Canada?

The average cost to replace sway bar links in Canada is $150–$400 CAD for both sides, including parts and labour. Sway bar bushing replacement averages $100–$230 CAD. A full stabilizer bar replacement averages $300–$700 CAD. These are Canadian figures with CAD pricing and not converted USD estimates.

Why is sway bar replacement so expensive?

Labour is the main cost driver, making up 50 to 60% of the total bill. Canadian shop rates run $90–$200/hr depending on location and shop type, and the job takes 1–2 hours. On older Canadian vehicles, seized hardware from road salt exposure can add significant labour time. OEM parts at dealer pricing also push the total higher on certain makes. Choosing an independent shop and quality aftermarket parts keeps costs at the lower end of the range.

How urgent is sway bar replacement?

Moderate urgency. A clunking sway bar link should be repaired within 1–2 weeks. It won't leave you stranded, but degraded handling, especially during sudden evasive manoeuvres, which increases risk, particularly on winter roads. A fully broken or disconnected link is more urgent and should be repaired within days.

How can you tell if you need a new sway bar?

The clearest indicators are: a clunking or knocking noise over bumps or when turning, increased body roll when cornering, and a loose or rattling feel from the front or rear suspension. A visual inspection with the vehicle on a lift will confirm whether the boots are cracked, the ball joints have play, or the bushings are deteriorated.

Is replacing a sway bar easy?

Sway bar link replacement is one of the more approachable DIY suspension repairs. There are no compressed springs and no alignment impact. On a rust-free vehicle it's a 45-minute job. On a Canadian vehicle with seized hardware it can take 2–3 hours. Bushings are slightly more involved due to bracket access but still manageable for intermediate DIYers. If hardware is heavily corroded, professional installation is the safer and often faster option.

What is the difference between a sway bar link and a stabilizer bar link?

They are the same part. Sway bar link, stabilizer bar link, anti-roll bar link, and end link all refer to the same component. It is the short arm with ball joints at each end connecting the sway bar to the suspension. The stabilizer bar is another name for the sway bar itself.

Is a $1,500 quote for sway bar links and control arms reasonable?

It can be. A quote of $1,500 CAD for front sway bar links plus both lower front control arms with ball joints is at the high end but not unreasonable in Canada, particularly at a dealer or in a high labour-rate market like Toronto or Vancouver. Control arm replacement is a significant job: the parts alone (OEM control arms with ball joints) can run $300–$600 per side, plus 2–4 hours of labour. Get a second quote from an independent shop and ensure the quote is itemized with parts and labour separated.

Bottom Line: What Should You Pay?

For most Canadian drivers with a mainstream vehicle (Honda, Toyota, Chevrolet, Ford), a sway bar link replacement should cost $150–$400 CAD for both sides at a reputable independent shop using quality aftermarket parts. Bushings add $100–$200 if needed at the same time. Anything significantly above these ranges warrants a second quote. Not because mechanics are dishonest, but because quote variation for this job is common and it pays to compare.

The single best way to save money is to source your own parts from a trusted Canadian supplier before booking. You get CAD pricing, confirmed fitment for your exact vehicle, and no dealer markup. Shop sway bar parts at PartsBlue, with over 3 million parts in stock, shipped from Canada with no customs fees and a Lowest Price Guarantee.
